Turbosound TCX82-R-WH 2-Way 8"Loudspeaker for Installation Applications (Weather Resistant, White) - NEW

In stock Save $125.01New
This product is brand new
This product is eligible for free shipping!

If you have any question please chat with us or call us at (514) 780-0648

Sale price$599.99 Regular price$725.00


Turbosound TCX82-R-WH 2-Way 8"Loudspeaker for Installation Applications (Weather Resistant, White) - NEW

  • 2 way loudspeaker for installation applications

  • 200 Watts continuous, 800 Watts peak power

  • All components weather resistant to IP54 for outdoor use

  • High excursion 8" low frequency driver with low mass voice coil for improved transient response

  • 1" high temperature dome compression driver with extended high frequency reproduction

  • Rotatable converging elliptical waveguide provides 90? H x 60? V dispersion

  • M10, M8 and M6 rigging points compatible with Turbosound and OmniMount* brackets

  • Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays

  • 12 mm (1/2") birch plywood enclosure with hard wearing semi matt white paint finish

  • Powder coated perforated plated steel mesh grille with foam backing

  • Captive cable tail with sealed cable gland on aluminium connector panel

  • Designed and engineered in the U.K.


The DUBLIN TCX82-R-WH is an 800 Watt compact 8" passive two way loudspeaker that is ideally suited for a wide range of portable or installed speech and music sound reinforcement applications. TCX82-R-WH consists of a trapezoidal enclosure housing a high excursion 8" reflex-loaded low frequency driver with low mass voice coil for improved transient response, and a 1" high temperature dome compression driver mounted on a rotatable converging elliptical waveguide, which provides a 90° horizontal by 60° vertical dispersion pattern.

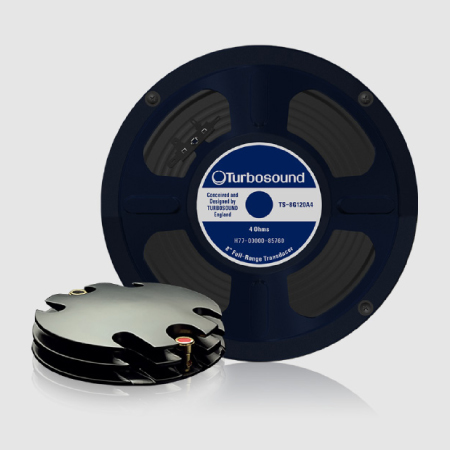

Custom-Engineered Drivers
Custom-Engineered Drivers

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. TCX82-R-WH’s high excursion 8" low frequency and 1" high temperature dome compression drivers ensure truly world-class performance that will stand the test of time.

Rotatable Waveguide
Rotatable Waveguide

The TCX82-R-WH’s compression driver is mated to a converging elliptical waveguide that is rotatable through 90°, allowing a swap of the horizontal and vertical dispersion patterns for a smooth wavefront, while providing exceptional pattern control. This feature is especially useful for retaining wide horizontal dispersion when the enclosure is mounted horizontally due to ceiling height restrictions.

Construction and Connectivity
Construction and Connectivity

Constructed from 12 mm (½ ") birch plywood, the cabinet is finished in hard wearing semi matt black textured paint and includes internal M10, M8 and M6 threaded rigging points for use with Turbosound wall and ceiling brackets, and industry standard loudspeaker brackets. A perforated steel mesh grille backed with reticulated foam protects the drive units. The rear panel features a sealed captive cable and gland.

Designed to Weather the Elements
Designed to Weather the Elements

When permanently installed, the TCX82-R-WH presents a discreet appearance with no visible side handles for visually unobtrusive loudspeaker arrays. The weatherised paint, zinc plated grill with outdoor powdercoat, and weather resistant coated drivers deliver an iP54 rated package that not only provides class-leading performance, but maintains its attractive appearance for many years.

Architecture & Engineering Specifications

The loudspeaker shall be of the full range, two-way passive type consisting of one 8" (203 mm) LF driver and one 1" (25 mm) HF compression driver. The loudspeaker shall be weather resistant for outdoor use, to rating standard IP54. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 100 Hz to 20 kHz and within -10 dB from 70 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 90° H x 60° V, rotatable. Nominal impedance shall be 8 Ohms. Power handling shall be 200 Watts continuous, 800 Watts peak. Sensitivity, measured on axis, mean averaged over stated bandwidth, shall be 94 dB, 1 Watt @ 1 metre. Maximum SPL (peak), measured at 1 metre with music program at stated amplifier input, shall be 123 dB. Dimensions: 408 mm high x 308 mm wide x 280 mm deep (16.1" x 12.1" x 11.0"). Net weight: 10.3 kg (22.7 lbs). The loudspeaker system shall be the Turbosound TCX82-R-WH. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equalled or exceeded.

Frequency response

100 Hz - 20 kHz ±3 dB
70 Hz - 20 kHz -10 dB

Nominal dispersion

90° H x 60° V @ -6 dB points

Power handling (IEC)

200 W continuous, 800 W peak


94 dB (1 W @ 1 m)

Maximum SPL

117 dB continuous, 123 dB peak


8 O


1 x 8" (203 mm) LF driver
1 x 1" (25 mm) HF compression driver


2-core captive cable tail

Wiring Pins

1+ / 1- input, pins 2+ / 2- link

Dimensions (H x W x D)

408 x 308 x 280 mm (16.1 x 12.1 x 11.0")

Net weight

10.3 kg (22.7 lbs)


12 mm (½") birch plywood


Semi matt white paint


Powder coated perforated Zinc plated steel

Flying hardware

M10 x 10, M8 x 4, M6 x 4 Points
